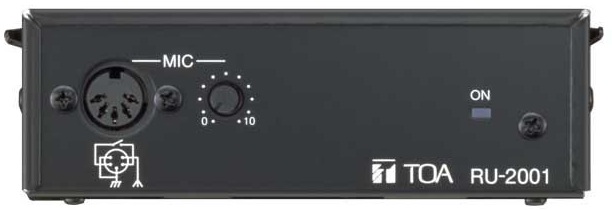

Ampli tăng âm cho micro PM-660D TOA RU-2001
Lượt xem: 2424
RU-2001 là bộ khuếch đại đường truyền Micro cho Micro thông báo PM-660D với chức năng kích hoạt trạng thái từ xa và giắc kết nối Micro DIN 5 chân. Nguồn điện cho PM-660D và ngõ ra âm lượng của Micro có thể được điều chỉnh từ xa thông qua RU-2001.
The RU-2001 is a microphone amplifier for the PM-660D Paging Microphone with a remote control switch and a 5-pin DIN socket. The power of the PM-660D's internal power amplifier, and globalspeaker output can be remotely controlled from the RU-2001.
Specifications
| Model | RU-2001 |
| Power Requirement | 12 ~ 24 VDC or 12 VAC adaptor |
| Current Consumption | 60mA |
| Microphone Input | -62 dB, 600 Ω, unbalanced, 5-pin DIN socket |
| Output | 0 dB, 600 Ω, balanced, M3 screw terminal, distance between barriers: 6.4 mm |
| Applicable Microphone | PM-660D |
| Operating Temperature | -10ºC to +50ºC |
| Operating Humidity | 90 %RH or less (no condensation) |
| Finish | Pre-coated steel plate, black |
| Dimensions | 124 x 42.5 x 159 mm |
| Weight | 700g |
- Sản xuất tại Nhật Bản.
- Bảo hành: 12 tháng.
